rn-tabs-benchmarks

RN BottomTab Benchmarks

This repository benchmarks Native Bottom Tabs against JS Bottom Tabs based on performance metrics such as load time and tab switch time. The Native Bottom Tab library, developed by okwasniewski, serves as the foundation for the native tab implementation. All benchmarking is conducted using a Native Stack implementation.

Benchmarking Metrics 📊

• Load Time: Time taken to load the initial screen when a bottom tab is opened.
• Tab Switch Time: Time taken to switch between tabs and display the next screen.

About the Benchmarking Process 📝

We are using the Marco tool to mark events and CLI tools provided by Marco to visualize the results.

Device details

These benchmarks were conducted on different Android real devices: - Vivo Y15 (Low-end device) - OS: Android 12 - RAM: 3 GB - OnePlus Nord 2T (High-end device) - OS: Android 14 - RAM: 8 GB - iPhone 15 Pro 17.2

Load Time ⌛

1. Capture the Initial Event:
   • The event is triggered when a button is clicked to open a bottom tab. (refer: Native & JS)
   • The timestamp is extracted from the Pressable.onPress event object.
   • The timestamp and a marker name are passed to the native module PerformanceTracker.track() to log the start time.
2. Track Screen Rendering:
   • The load time completes when the initial screen content is fully painted and visible.
   • We wrapped the Article Screen with the PerformanceTracker API from the Marco library.
   • This accurately captures the onDraw event, indicating when the screen is fully rendered.
   • Code reference

Tab Switch Time 🔄

1. Capture the Tab Press Event:
   • The event is captured when a tab is pressed. (refer: JS & Native)
   • The timestamp is obtained from listeners attached to the tabPress event at the screen level.
   • This timestamp, along with a marker name, is sent to PerformanceTracker.track() to log the start of the tab switch action.
2. Track New Screen Rendering:
   • The tab switch time completes when the new screen content is fully rendered and visible.
   • We wrapped the Album Screen with the PerformanceTracker API from the Marco library.
   • This accurately captures the onDraw event, marking the end of the tab switch process and the benchmark.
   • Code reference

Results

Load Time Comparison (Native vs JS)

Device	Native Bottom Tabs	JS Bottom Tabs
Vivo (low-end)	357 ms	278 ms
OnePlus (high-end)	98 ms	122 ms
iPhone	61 ms	55 ms

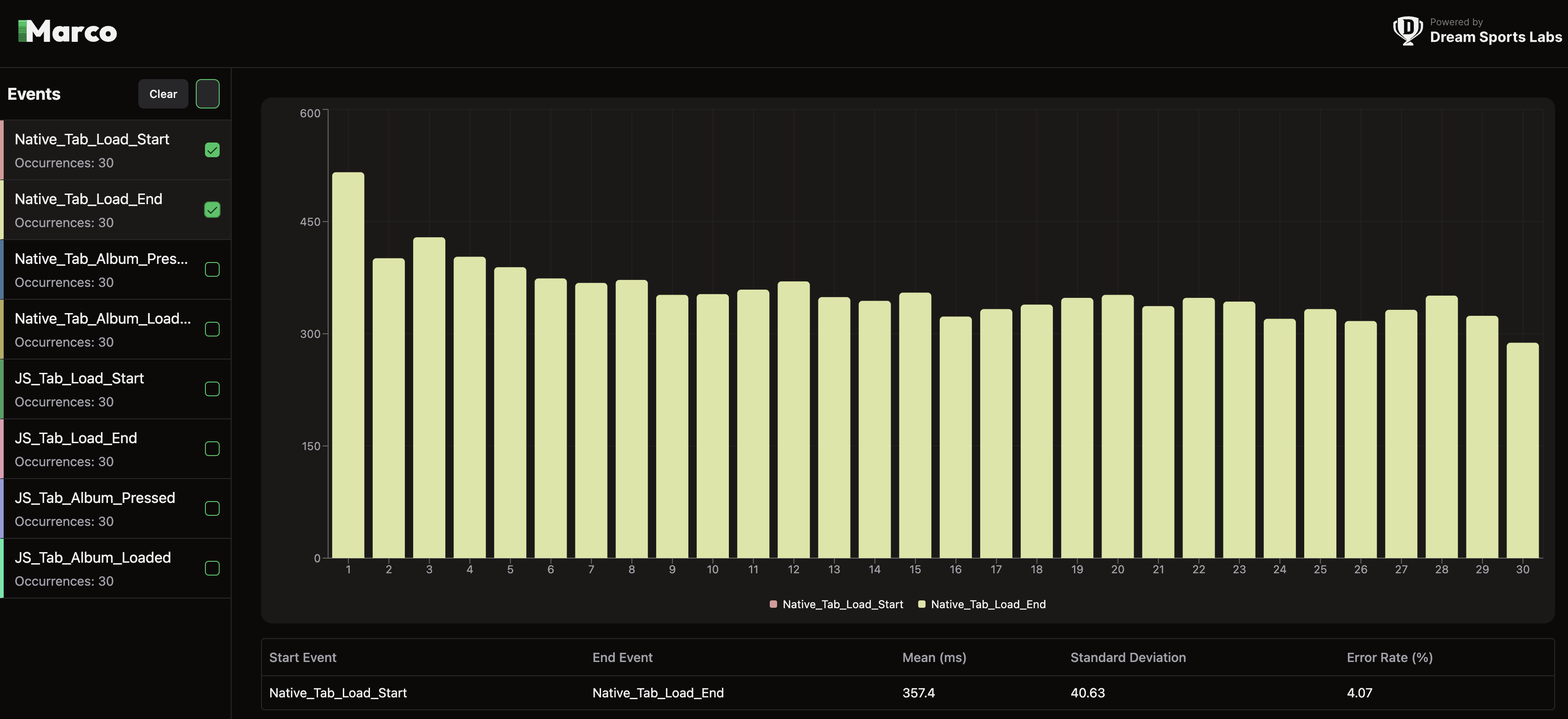

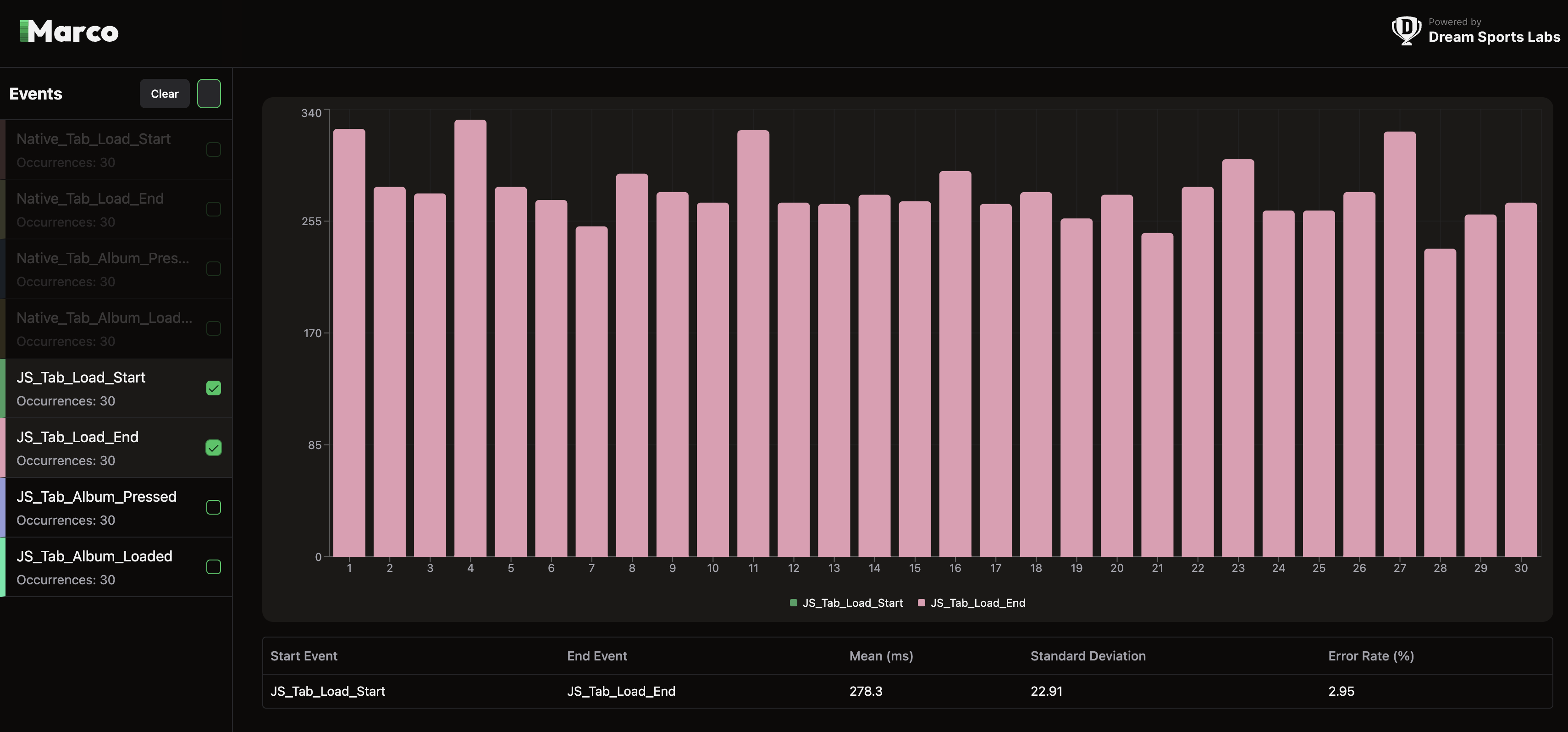

Marco reports for Vivo

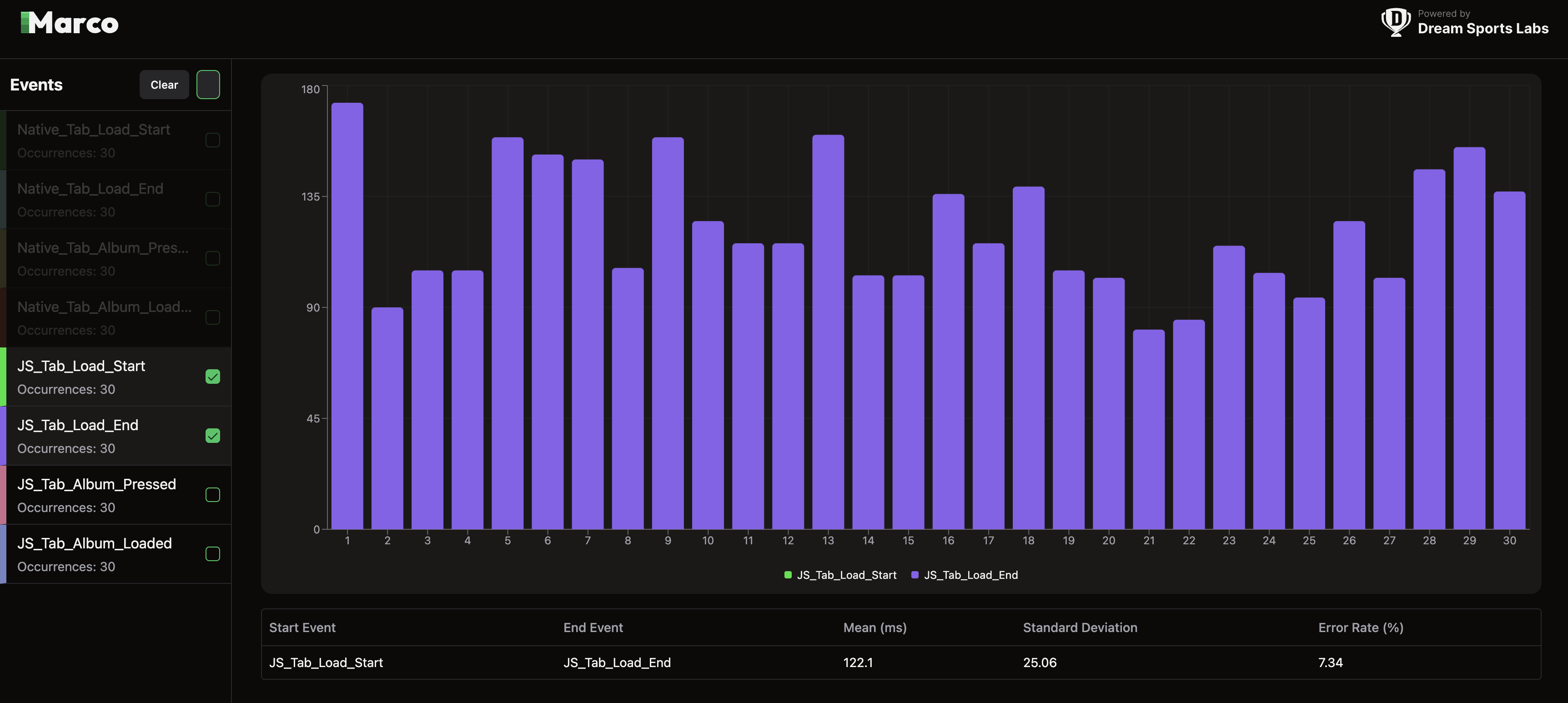

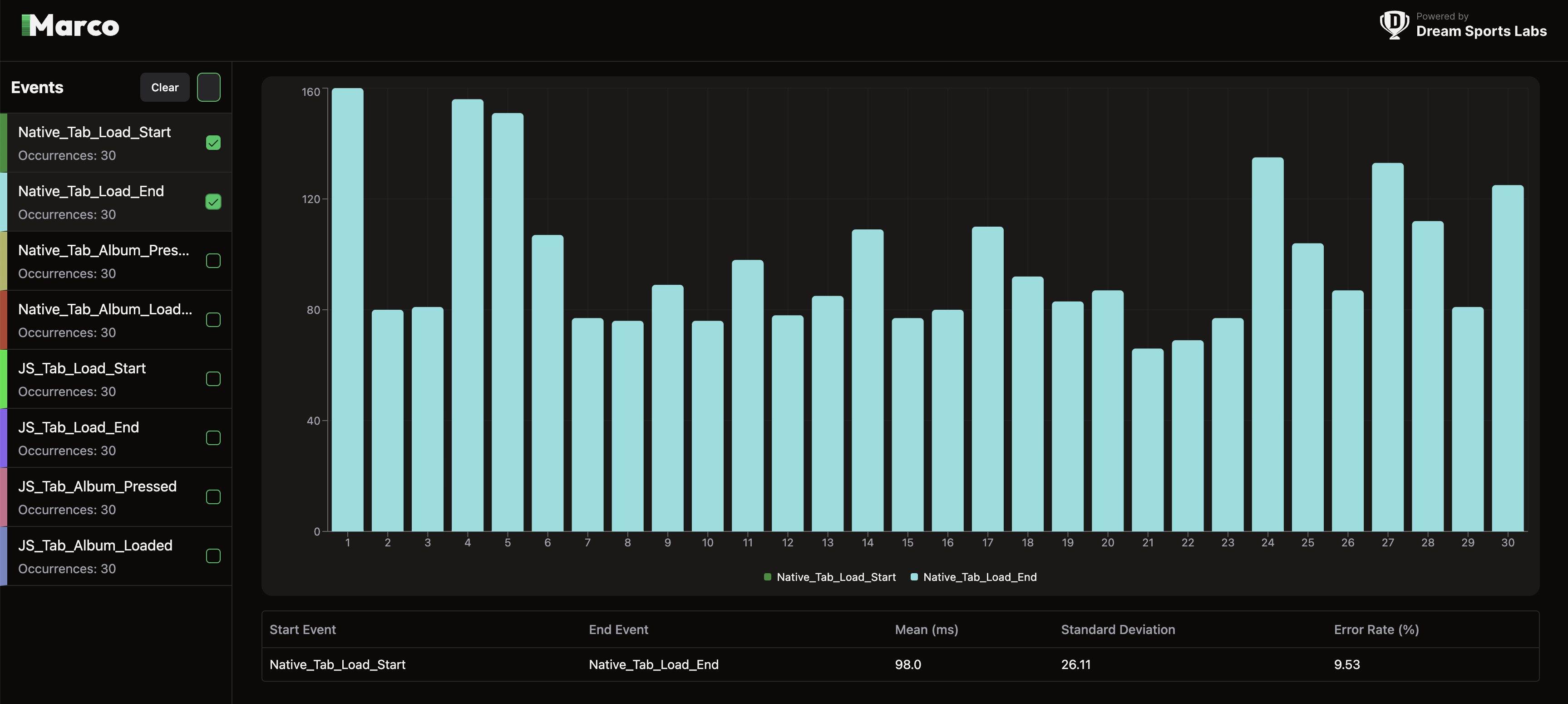

Click to View Oneplus Load Time Reports

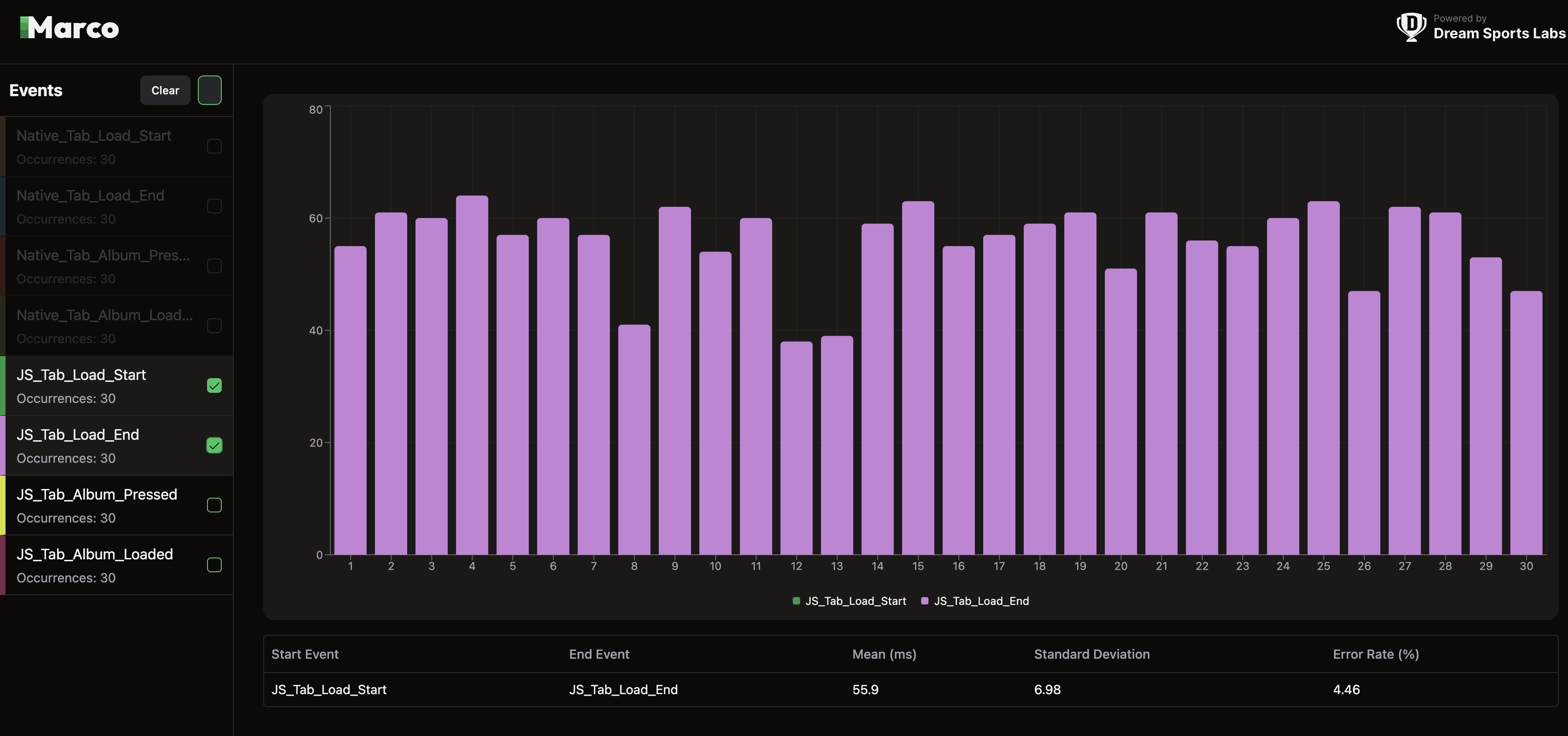

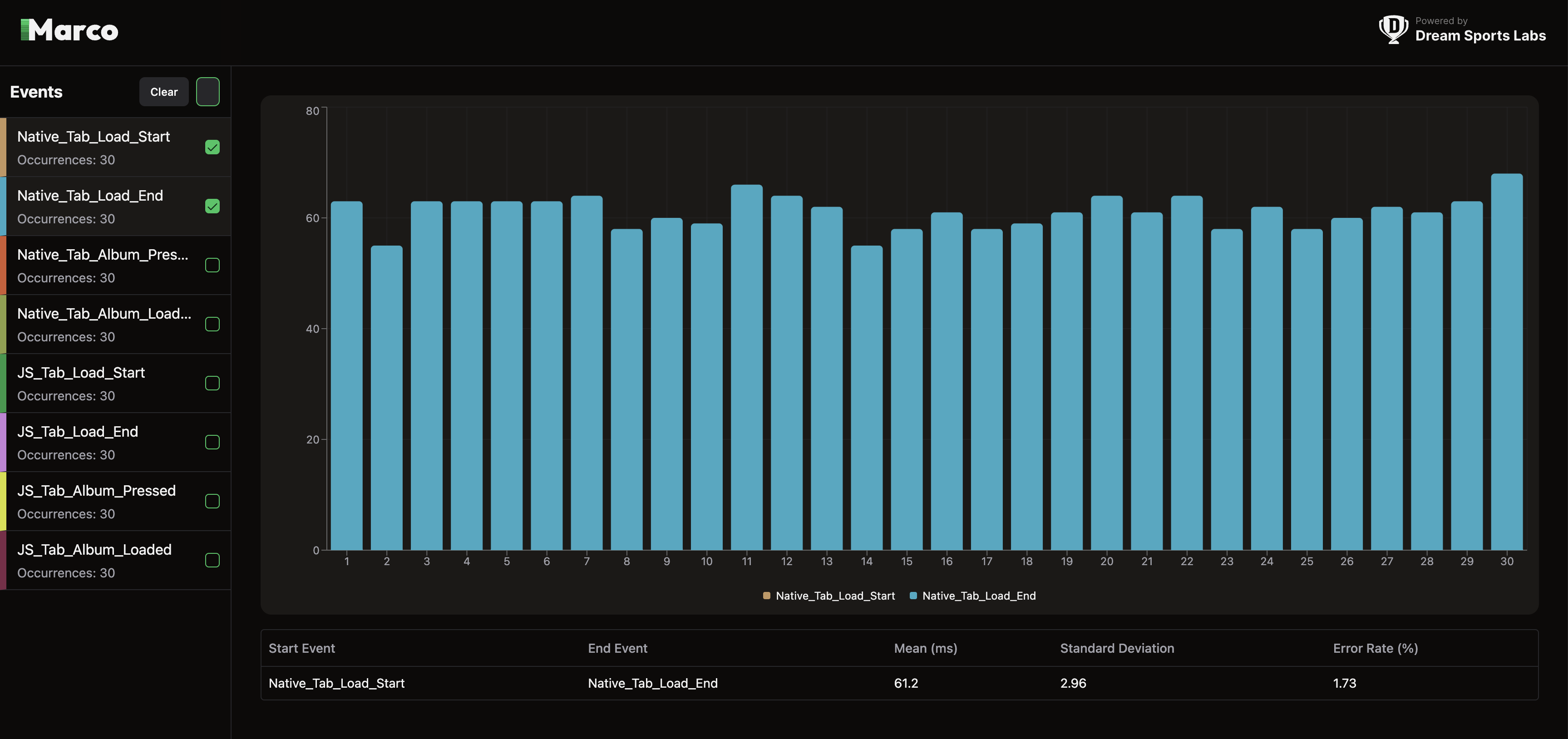

Click to View iPhone Load Time Reports

Tab Switch Time Comparison (Native vs JS)

Device	Native Bottom Tabs	JS Bottom Tabs
Vivo (low-end)	418 ms	375 ms
Oneplus (high-end)	92 ms	107 ms
iPhone	28 ms	34 ms

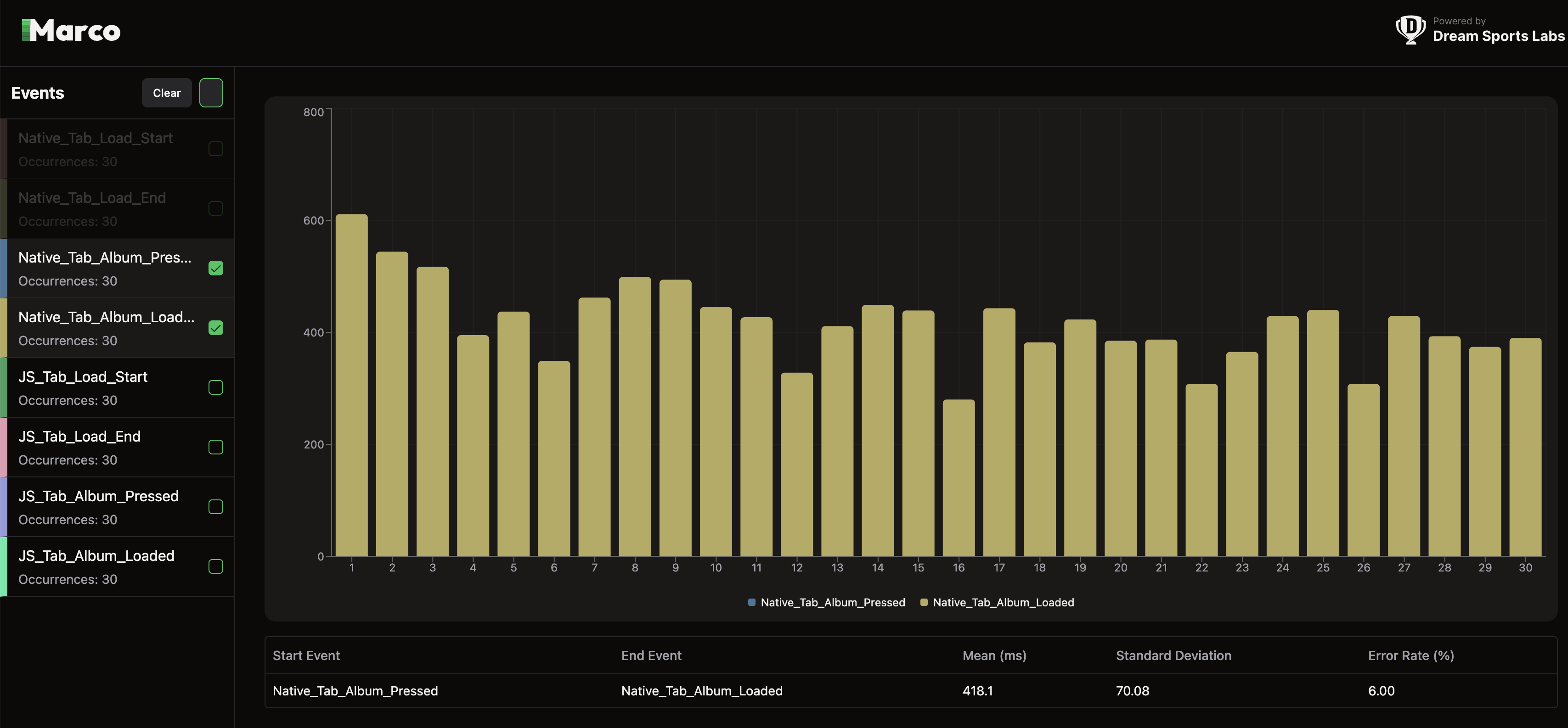

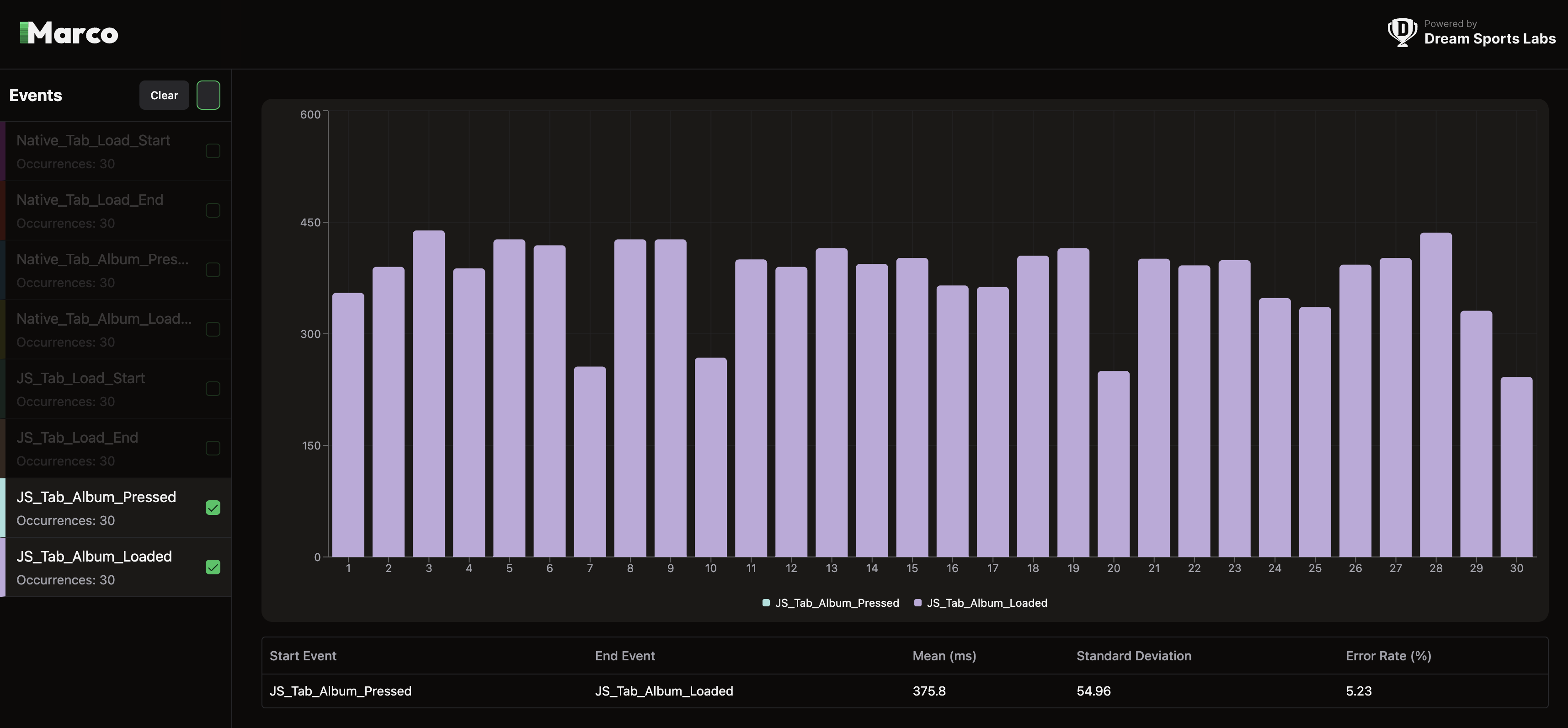

Marco reports for Vivo

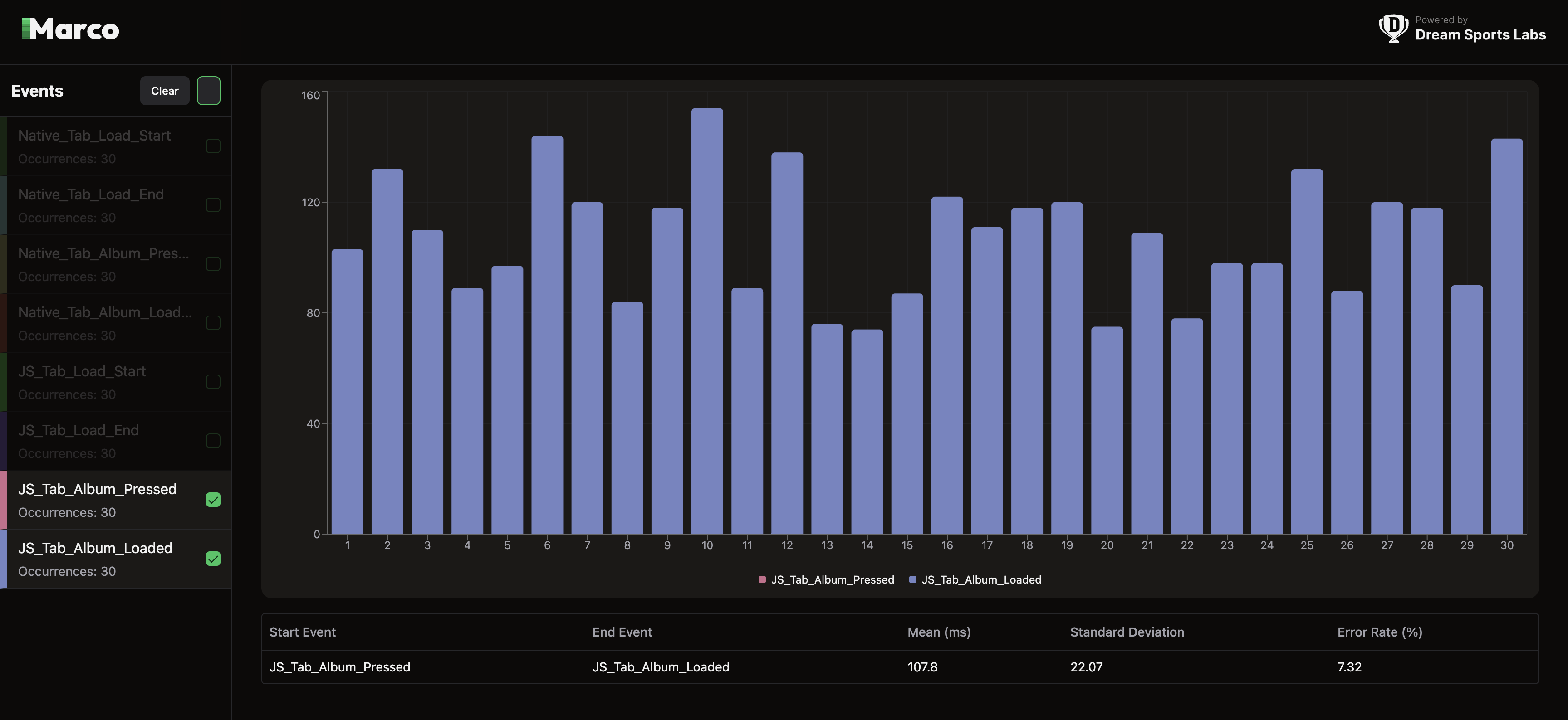

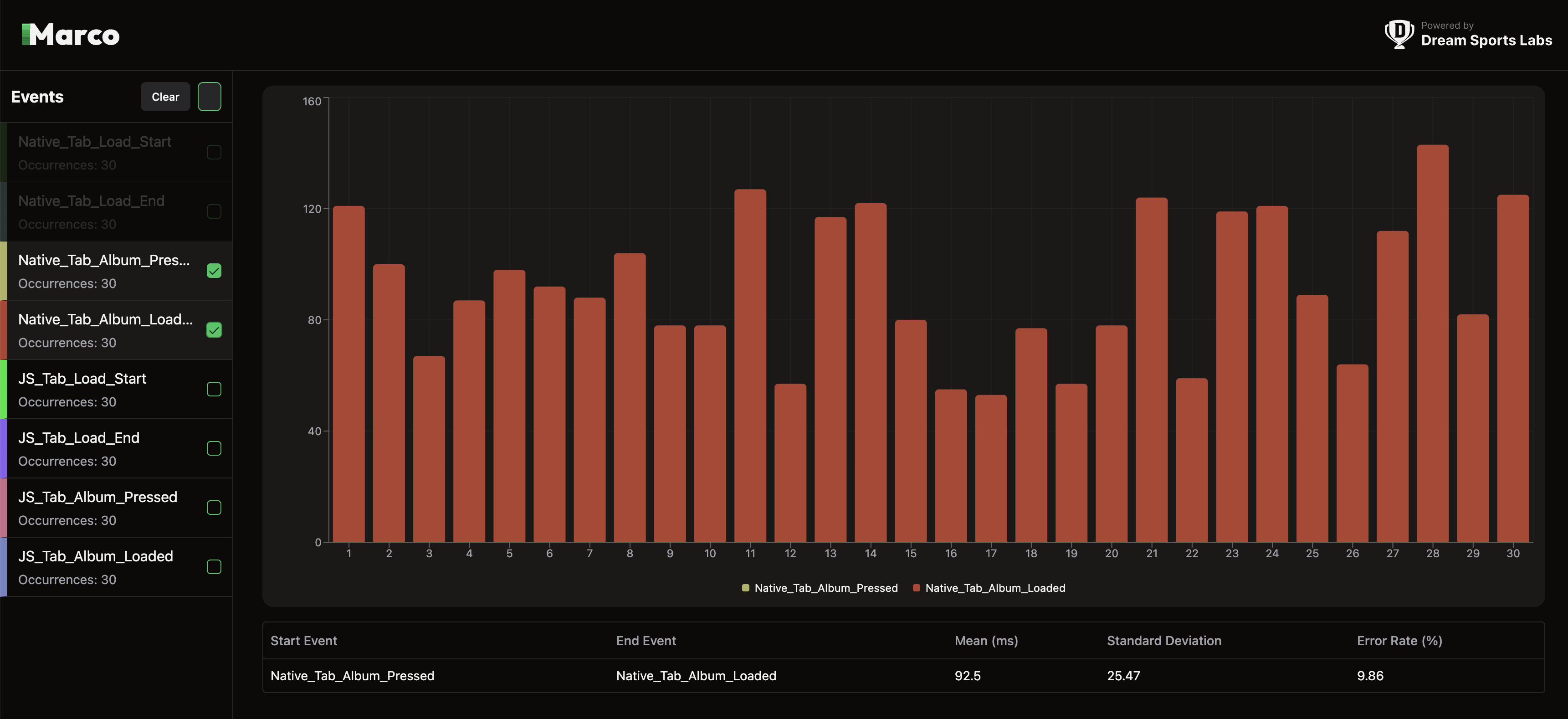

Click to View Oneplus Tab Switch Reports

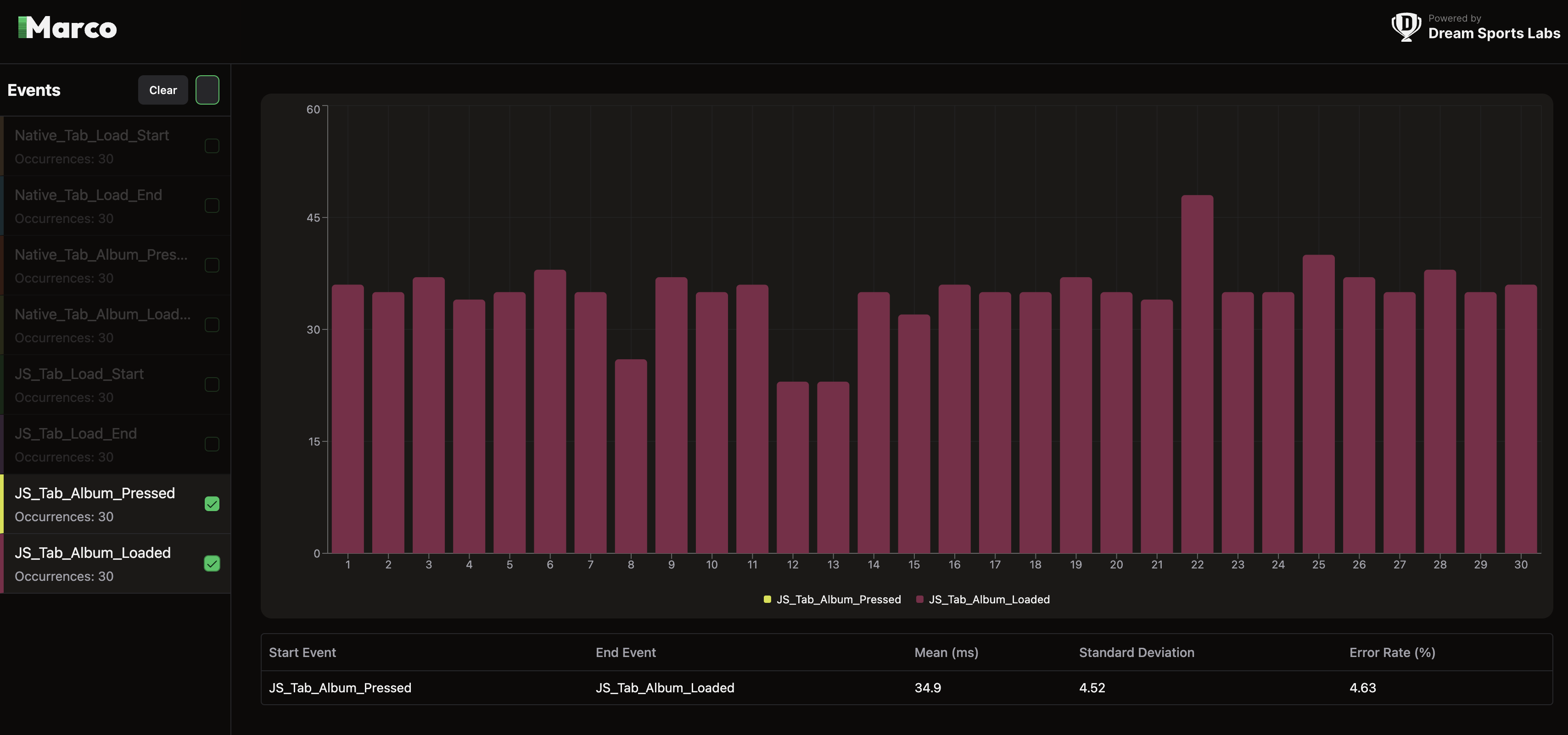

Click to View iPhone Tab Switch Reports

The Marco snapshots are stored inside: reports/<platform>/<device>/log.json.

Summary 📌

Load Time:

• JS Bottom Tabs were faster on low-end devices (278ms vs. 357ms).
• Native Bottom Tabs were faster on high-end devices (98ms vs. 122ms).
• Native Bottom Tabs were slower on iOS devices.

Tab Switch Time:

• JS Bottom Tabs had a slight edge on low-end devices (375ms vs. 418ms).
• Native Bottom Tabs were faster on high-end devices (92ms vs. 107ms).
• Native Bottom Tabs were faster on iOS devices.

How to Run the Benchmarks 🛠️

### Prerequisites 1. [React Native Environment Setup](https://reactnative.dev/docs/next/environment-setup) 2. [Maestro Setup](https://maestro.mobile.dev/) - To check if Maestro is installed on your system, run command: ```sh maestro --version ``` ### Setup ```sh git clone git@github.com:ds-horizon/rn-tabs-benchmarks.git cd rn-tabs-benchmarks yarn install ``` ### Create Release Build ```sh yarn android --mode=Release ``` ### Run the Benchmarks ```sh yarn get:numbers:android ``` This will run the test as described in `src/scripts/automation/test.yaml`. ### Generate and Visualize Report A configuration file, `marco.config.js`, contains default paths to store reports. We can configure them based on our needs. ```sh yarn marco generate --platform android ``` ```sh yarn marco visualize --platform android ``` This will open up a dashboard where we can select events to analyse data. > **Ensure the correct `dataDir` path is set in `marco.config.js`**. </details> 👉 Checkout [Marco](https://www.npmjs.com/package/@d11/marco) to benchmark more such scenarios.
